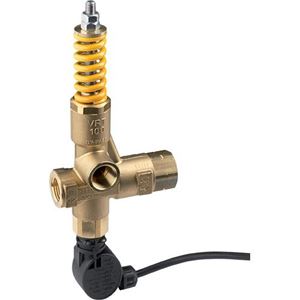

Mecline VRT100-190 High Flow Unloader Valve 2,760 PSI with Pressure Switch. Use for burner control or time delay switch. With working pressures up to 2,465 PSI and flows up to 26.4 GPM

Features:
• Integral microswitch detects full bypass mode
• Microswitch contained in an electrical box IP55, with three core cable for connection with the electrical system of the pressure cleaner
• Positioning of all o-ring seals before the threads, for greater mechanical strength
• Shutter axially guided for greater stability at high flow rates
• Stainless steel seat and shutter designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life
• Stem with internal anti-rotation system, for greater life
• Stem o-ring seal is placed on the connecting stem guide to allow the stroke of the stainless steel stem on o-ring, increasing the life
• Hexagonal check valve for a better smoothness

Specifications:
• Spring Color: Yellow
• Rated Pressure: 2,465 PSI
• Permissible Pressure: 2,760 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 26.4 GPM
• Micro Switch: 6 A, 250 V, 47.24” Cable length
• Material: Brass body & fittings
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Port: 1/2” F
• Weight: 47.80 Oz
