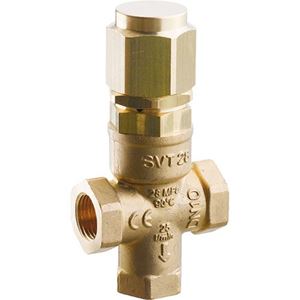

Picture of SVT Brass Safety Valve 5,800 PSI, Dual Inlet

SVT Brass Safety Valve 5,800 PSI, Dual Inlet

SKU: SVT40

Brand: Mecline

$59.20

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Mecline SVT40 Dual Inlet Brass Safety Valve 5,800 PSI. With rated pressures up to 5,220 PSI and flows up to 6.6 GPM


Features:
• Damping of the pressure spikes
• Total flow discharge


Note:
• Becomes a safety device only after set-up adjustment done by installer


Specifications:
• Rated Pressure: 5,220 PSI
• Permissible Pressure: 5,800 PSI
• Minimum Adjustable Pressure: 522 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 6.6 GPM
• Material: Brass
• Inlet Ports (2): 3/8" F
• Outlet Port: 3/8” F
• Weight: 17.28 Oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
