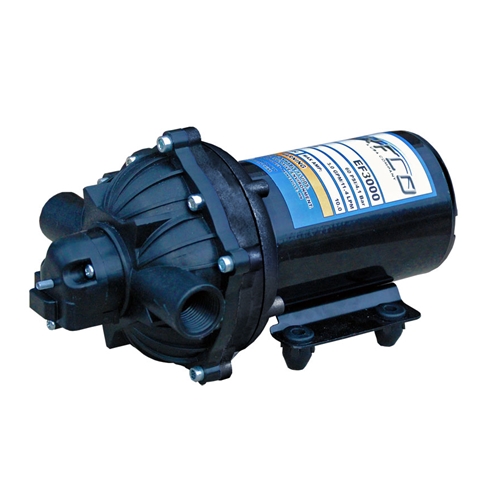

Everflo EF3000 Diaphragm Pump. Demand Switch – Operates only when liquid flow is required. Replacement for agricultural sprayers and fluid transfer applications.
Features:• Polypropylene pump housing and valve plate• Viton® Valves – Santoprene® Diaphragm• Zinc Plated Steel fasteners• Painted Steel 3” Motor Shelll• Honeywell™ Micro Switch• Round-Up® Ready • Self Priming up to 8’ above fluid level
Specifications:• Demand Switch – Operates only when liquid flow is required• Max. Flow: 3.0 GPM• Max. Pressure: 60 PSI • Max. Fluid Temperature: 140° F• Voltage: 12 VDC • Max. Amps: 10.0• Inlet/Outlet Ports: 1/2” Female NPT • Inline fuse protection• Wire leads with 2-pin connector• Owner’s manual and colored box• CE Approved*• Pump Dry Weight: 5.6 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Comet 1/2" FPT High Pressure Ball Valve 7,250 PSI
Specifications:• Zinc plated steel body• Chrome plated steel ball• Max Pressure: 7,250 PSI• Max Temperature: 212º F• Inlet: 1/2" Female NPT • Outlet: 1/2" Female NPT• Replaces BV-12FF• Weight: 1.25 lbs
Fairview BV4103-C 3/8" NPTF Forged Brass Ball Valve 600 WOG. Fairview's Forged Brass Ball Valves are full port, feature brass balls and fine NPTF threads
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Features:• Brass valves for use in W.O.G. = Water, Oil and Gas• Two piece Body• Full Port• Blowout-Proof Stem• PTFE Seats
Specifications:• W.O.G: 600• Pipe Size: 3/8” NPTF• Connection Type: Female to Female• Materials: Brass C3700, Nickel Plated Steel, PTFE• Operating temperature: -40°F to 356°F (-40°C to 180°C)• Weight: 0.24 lbs
Fairview BV4103-E 3/4" NPTF Forged Brass Ball Valve 600 WOG. Fairview's Forged Brass Ball Valves are full port, feature brass balls and fine NPTF threads
Specifications:• W.O.G: 600• Pipe Size: 3/4” NPTF• Connection Type: Female to Female• Materials: Brass C3700, Nickel Plated Steel, PTFE• Operating temperature: -40°F to 356°F (-40°C to 180°C)• Weight: 0.61 lbs
Fimco 2.1 GPM 60 PSI Gold Series 5277995/5275814 High-Flo Duplex 12 Volt Diaphragm Pump with Internal Bypass and 3/8" FPT (Threaded) Ports. Replacement pump for spot sprayers, liquid fertilizer units, planters or back up water systems. Can also be used for potable water. Ready for Roundup®
Features:• RELIEF VALVE MODELS have pressure controlled by an internal relief valve, and run continuously unless electric current is turned off• Diaphragm design eliminates troublesome shaft seal• Pump can be run indefinitely without damage• Ball bearing drive - assures longer pump life• Excellent self-priming capability• Santoprene diaphragms and viton valves are standard• Maximum temperature of pumped liquid 130°F• Permanent magnet motor - long life brushes• Fuse protected• Built-in cooling fan
Specifications:• Voltage: 12 VDC 8 AMPS Max• Max Flow: 2.1 GPM• Max Pressure: 60 PSI• Ports(2): 3/8” Female NPT• Two Pin Connector: 6” Long• Fimco Box #: 5275814• Fimco Pump #: 5277995• DO NOT USE With Flammable Or Combustible Liquids• Packaging: Small box• Weighs 3.15 lbs
Fimco 5277995/5275814 Pump Breakdown
