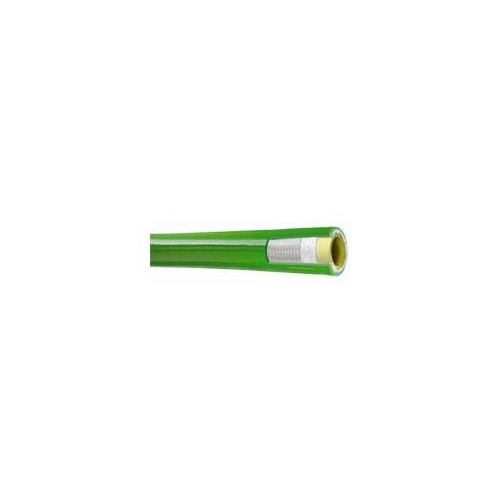

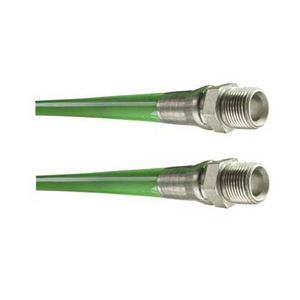

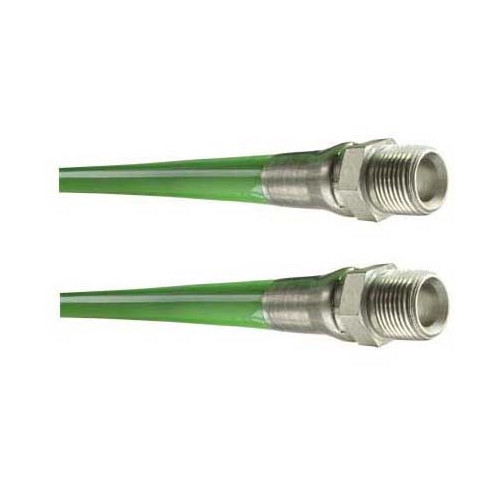

Piranha® LLGR Series 1/8” x 200’ sewer jetter hose assembly with MxM fittings. Piranha® LLGR series hose is used in applications for commercial, industrial and residential sewer cleaning
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/8”• Assembled Length: 200’• Male NPT Fittings: 1/8 - 27• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 6.95 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
• Inlet Washer with Cone Filter 304SS 50/60 Mesh• For 3/4 FGH garden hose inlet connectors• Replaces AR7369
General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCP1FS• Weight: 0.06 lb
1/4” General Pump # 3.0 “Penetrator” Type Sewer Nozzle 1 Front 3 Rear 5,000 PSI.
Features• “Penetrator” nozzles blast forward with one nozzle to break up debris and clogs• 3 Rear (25°) facing nozzles advance hose through pipe• Excellent for cutting through roots, dirt and debris• High pressure nozzles are sized to match the flow and pressure specifications of the equipment• Heat-treated Stainless Steel nozzles are wear and corrosion resistant• Great for pipe, sewer and drain cleaning• Compact design allows for maneuverability and cornering within pipes• Works best on 2" to 4" Pipes
Specifications • Nozzle Size: # 3.0• Material: Stainless steel• Maximum Pressure: 5,000 PSI• Inlet: 1/4" NPT-F• Outside Diameter (O.D.): .63”• Weight: .05 lb
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Features• Forward jet breaks up clogs & debris• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line• Corrosion resistant stainless steel construction
Specifications • Inlet: 1/4” FPT• Nozzle Size: # 5.5• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Max. Fluid Temperature: 300º F• Weight: 0.6 oz.
