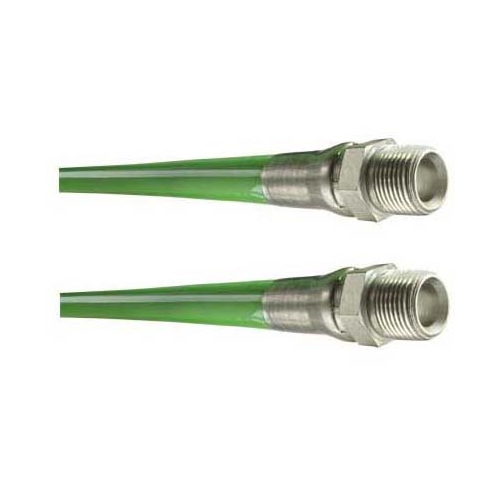

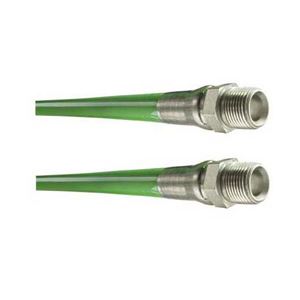

Piranha® LLGR Series 3/8” x 150’ sewer jetter hose assembly with MxM fittings. Piranha® LLGR series hose is used in applications for commercial, industrial and residential sewer cleaning

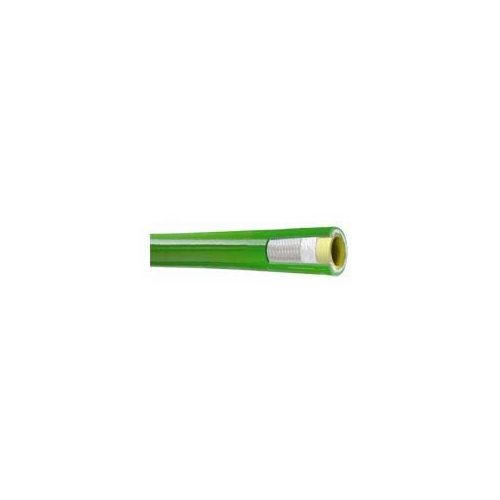

Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 3/8”• Assembled Length: 150’• Male NPT Fittings: 3/8 - 18• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 15.0 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
3/8” Suttner #8.0 ST-49 Bullet Sewer Cleaning Nozzle. With 1 Front and 4 Rear jet inserts and rated to 7,252 PSI
Features:• High Quality, German engineered components• Made out of wear-resistant, hardened stainless steel• 1 Front jet with nozzle insert• 4 Rear jets with nozzle inserts, angle of jet is 30°• Sturdy wall thickness, long service life and a minimum of wear and tear• All nozzles are provided with hardened stainless steel inserts• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer
Applications:• Suitable for removal of sludge deposits• Desilting of pipes• Opening of frozen pipelines
Specifications:• Nozzle Size: # 8.0• Material: Stainless steel• Maximum Pressure: 7,252 PSI• Inlet: 3/8” Female• Outside Diameter (O.D.): 1.18”• Weight: 5.8 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 3/8”• Assembled Length: 200’• Male NPT Fittings: 3/8 - 18• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 20.8 lbs.
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/8”• Assembled Length: 100’• Male NPT Fittings: 1/8 - 27• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 3.45 lbs.
Features• Forward jet breaks up clogs & debris• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line• Corrosion resistant stainless steel construction
Specifications • Inlet: 3/8” FPT• Nozzle Size: # 4.5• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Max. Fluid Temperature: 300º F• Weight: 1.4 oz.
