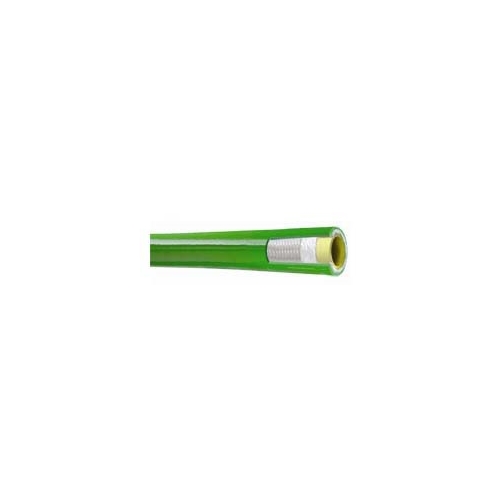

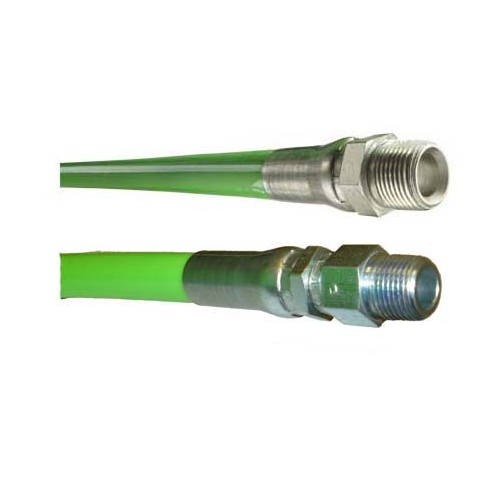

Piranha® LLGR Series 3/8” x 300’ sewer jetter hose assembly with MxMS fittings. Piranha® LLGR series hose is used in applications for commercial, industrial and residential sewer cleaning
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 3/8”• Assembled Length: 300’• Male NPT Fitting: 3/8 - 18• Male Swivel NPT Fitting: 3/8 - 18• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 31.45 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® QD-ISOAC6-6F 3/8 Coupler x 3/8 Female Pipe ISO Series A 7241-1 Steel 4,600 PSI Quick Disconnect. Fairview's ISO A Interchange Couplers Interchange with Aeroquip 5600, Parker 6600, Safeway S56 and Faster ANV Series
Features:• Industry interchangeability with other manufacturer's ISO "A" couplers and nipples• High Strength Steel Construction• Nitrile NBR seals with PTFE back-up ring• Proven ball lock mechanism• 4 : 1 safety factor (Min. Burst = WP. X 4) • Hydraulic applications where connection and disconnection is required either for maintenance or operation• For use on truck & trailer, snow plows, agricultural, dump, construction equipment
Specifications:• Working Pressure: 4,600 PSI• Body Size: 3/8• Female Pipe: 3/8• Body Material: Steel• Temperature Range: -40F to 250F • Approx. Weight: 0.33 lbs
Accutek® QD-ISOAN6-6F 3/8 Nipple x 3/8 Female Pipe ISO Series A 7241-1 Steel 4,600 PSI Quick Disconnect. Fairview's ISO A Interchange Couplers Interchange with Aeroquip 5600, Parker 6600, Safeway S56 and Faster ANV Series
Specifications:• Working Pressure: 4,600 PSI• Body Size: 3/8• Female Pipe: 3/8• Body Material: Steel• Temperature Range: -40F to 250F • Approx. Weight: 0.11 lbs
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/4”• Assembled Length: 300’• Male NPT Fittings: 1/4 - 18• Color: Green• Max. Working Pressure: 4,000 PSI • Weight: 20.65 lbs.
3/8” Suttner #15.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI
Features:• High Quality, German engineered components• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage• The sharp edges cut, break and penetrate through every kind of blockage• Made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Lateral front jets with nozzle inserts• 6 Rear jets with nozzle inserts• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer
Applications:• Penetration of completely clogged pipes• Opening of root masses• Opening of frozen pipelines• Hydraulic thrust boring flushing operations
Specifications:• Nozzle Size: # 15.0• Material: Stainless steel• Maximum Pressure: 5,076 PSI• Inlet: 3/8” Female• Outside Diameter (O.D.): 1.11”• Weight: 4.0 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
