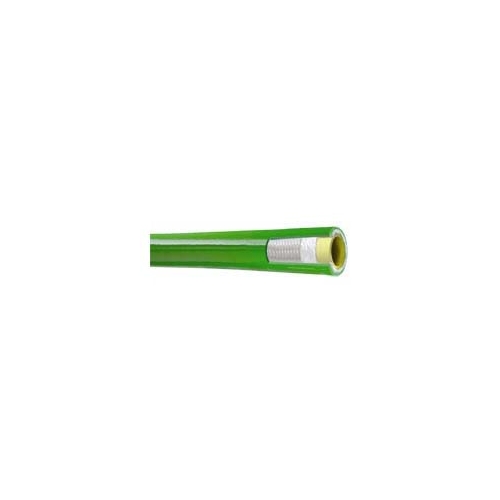

Construction:
• Inner Tube: Yellow seamless thermoplastic
• Reinforcement: High tensile double synthetic fiber braids
• Cover: Abrasion resistant polyether-urethane

Features:
• Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions
• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product
• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis
• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption
• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance
• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested

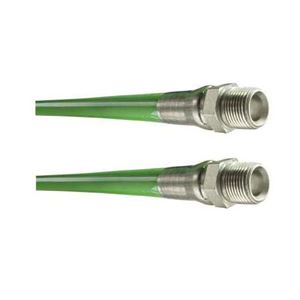

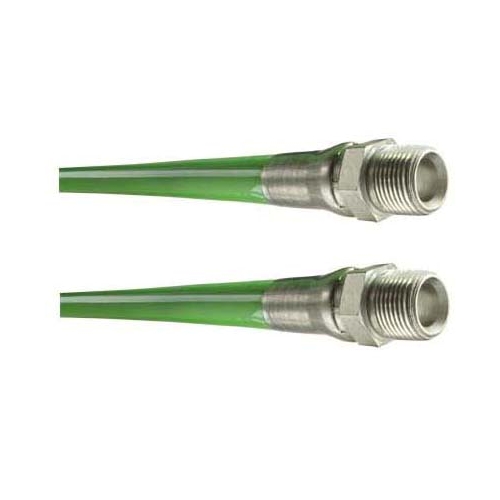

Specifications:
• Service Temp. Range: -40º F to +160º F
• Hose ID: 3/8”
• Assembled Length: 200’
• Male NPT Fittings: 3/8 - 18
• Color: Green
• Max. Working Pressure: 4,000 PSI
• Weight: 20.8 lbs.

Construction:
• Inner Tube: Yellow seamless thermoplastic
• Reinforcement: High tensile double synthetic fiber braids
• Cover: Abrasion resistant polyether-urethane

Features:
• Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions
• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product
• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis
• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption
• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance
• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested

Specifications:
• Service Temp. Range: -40º F to +160º F
• Hose ID: 1/4”
• Assembled Length: 200’
• Male NPT Fittings: 1/4 - 18
• Color: Green
• Max. Working Pressure: 4,000 PSI
• Weight: 13.7 lbs.

3/8” Suttner #10.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 10.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner ST-36 Sludge Pump Casting with Hose Barb. Turns a pressure washer into a high output pump. Great for flood cleanup, car wash pits, draining pools or chemical spills

Features
• Water flowing through the high pressure nozzle creates a powerful venturi suction that vacuums up slurry solutions
• Debris as large as 3/4” will pass through the casting and out the discharge hose
• Vacuums up liquid slurries at a ratio of about 1:11 Example: Using 4 GPM will produce an output of 44 GPM
• Hose barb 1 1/2"
• Casting Only: Does not include 0 degree 1/4” MPT nozzle, coupling and hose

Suttner ST-36 Sludge Pump In Action on YouTube

Specifications
• Flow Rate: 11:1
• Max Pressure: 4,000 PSI
• Max Temp: 104° F.
• Inlet: 3/8" FPT
• Nozzle Port: 1/4" FPT
• Weight: 0.80 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
