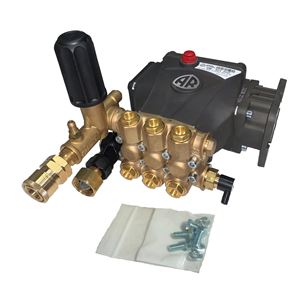

Picture of 2700PSI, 3.0GPM AR Direct Drive Pump with Unloader, Injector & Thermal Valve

2700PSI, 3.0GPM AR Direct Drive Pump with Unloader, Injector & Thermal Valve

SKU: RCV3G27-PKG

Brand: Annovi Reverberi - AR North America

$318.75

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America RCV 3G27-PKG pump with bolt-on unloader, chemical Injector, thermal valve, QC socket outlet and garden hose inlet. RCV D Version with F7 flange series pumps are designed to direct drive on gasoline engines ranging from 5 - 7 HP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RCV is a result of our combined 60 years of pumps building experience and expertise


Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications:
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 2,700 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 3/4” Hollow
• Max. Horsepower Requirements: 7.36 GHP
• Max. Fluid Temp.: 140° F.
• Oil capacity: 9.81 oz
• Unloader Inlet: 3/4" GH (garden hose)
• Unloader Outlet: 3/8 QC socket
• Weight: 13.1 lb.


Package Components:
• RCV3G27D-F7 pump
• AR VRC-B adjustable unloader with chemical injector
• Thermal relief valve
• 3/8 QC socket
• Garden hose connector with cone filter
• Mounting bolts

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
