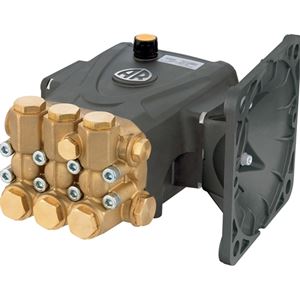

Annovi Reverberi / AR North America RRA E Version with F17 flange series pumps are designed to direct drive on electric NEMA 182 - 184 frame motors ranging from 6.2 – 11.3 EBHP. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRA is a result of our combined 60 years of pumps building experience and expertise
Features:• Latest in design and technology• New crankcase style• High strength forged brass manifold for long term use• NEW ceramic plungers, thicker wall to help prevent thermal shock• Stainless steel valves• Side mount valve seat o-rings• High quality high pressure seals• NEW low pressure seal with built in scraper• Two piece piston guides• NEW connecting rod with 12% more load surface• Large side cover sight glass• Oversized bearings• Rear cover oil drain• Forged, precision ground crankshaft
Specifications: • Max. Volume: 4.0 GPM• Max. Discharge Pressure: 3,000 PSI • Max. Pump Speed: 1,750 RPM• Shaft Diameter: 1-1/8” Hollow• Max. Horsepower Requirements: 8.2 EBHP • Max. Fluid Temp.: 140° F.• Inlet Ports (2): 1/2" Female• Outlet Ports (2): 3/8" Female• Oil capacity: 13.35 oz• Weight: 18.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Fairview 139-6C 3/8 Hose ID x 3/8 Male Pipe Brass 90° Elbow Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.07 lbs
Fairview 139-6D 3/8 Hose ID x 1/2 Male Pipe Brass 90° Elbow Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.11 lbs
General Pump 15° (Yellow) #3.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 3.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
