Picture of 3000PSI, 3.5GPM Annovi Reverberi Solid Shaft Pump

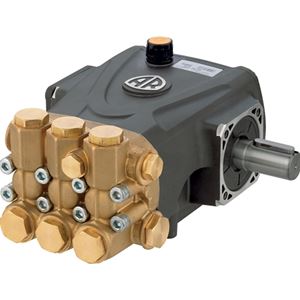

3000PSI, 3.5GPM Annovi Reverberi Solid Shaft Pump

SKU: RRA3.5G30N

Brand: Annovi Reverberi - AR North America

$348.55

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Annovi Reverberi / AR North America RRA N Version with 24mm solid shaft series pumps are designed to belt drive or gear drive on gas engines and belt drive or flange coupling on electric motors. Intended use for heavy tasks; this triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RRA is a result of our combined 60 years of pumps building experience and expertise


Features:
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft


Specifications:
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 7.2 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 13.35 oz
• Weight: 17.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
