Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 15°
• Nozzle Size: 4.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 25°
• Nozzle Size: 4.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

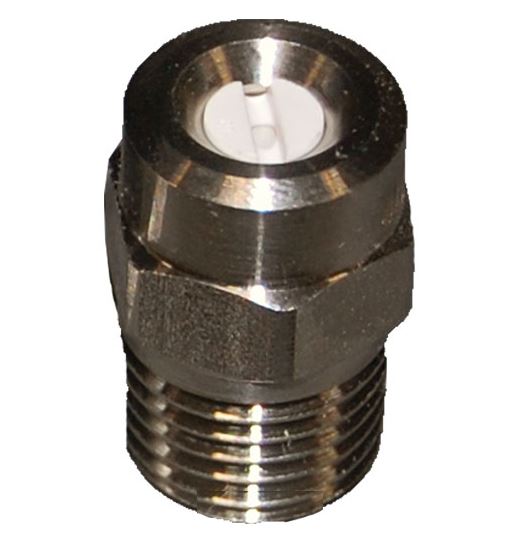

Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications

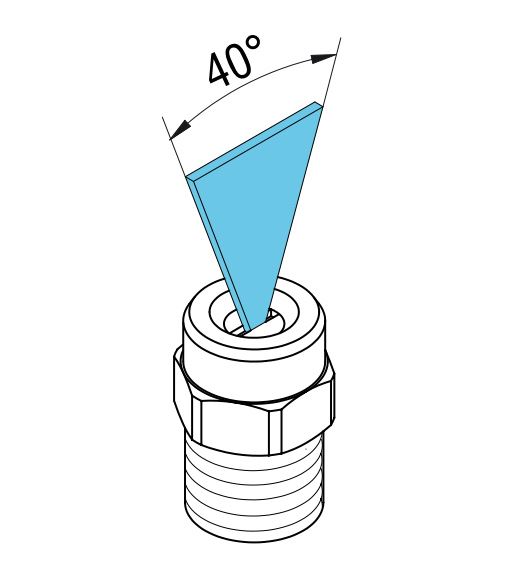

• Flat fan jet angle: 40°
• Nozzle Size: 4.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

>

Comet Pump Aluminum Water Inlet Filter with Garden Hose Inlet. The line strainer or filter was designed to remove debris and sediment from the water supply entering the pump. It will prolong the life of a high pressure pump to use a line strainer for any water supply.

Features
• Aluminum housing with removable plastic cap for easy cleaning
• 50 Mesh cuffed filter
• Stainless steel GHT tension spring on garden hose adapter

Specifications
• Max Pressure: 170 PSI
• Max Flow: 10.0 GPM
• Aluminum body
• Inlet: Female garden hose (FGH)
• Outlet: 1/2" Male
• Side Ports (2): 1/4" Female
• Replaces: 85.300.058 & AR3000-A2G
• Weight: 0.60 Lbs
