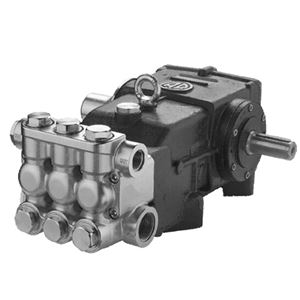

Annovi Reverberi / AR North America RTF135N Triplex Plunger Pump. The new RTF Series of pumps from AR North America are designed for high-pressure industrial washing applications. They are constructed of cast iron bodies and feature a forged brass head with a threaded style sight glass in the rear cover made of metal. Internal components include special solid ceramic plungers for long life and durability. Oversized premium tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form provide positive seating and extended life. Two-piece connecting rods are bronze material oversized for strength and load disbursement. These pumps are designed for belt drive systems, with a 35mm solid crankshaft.

Specifications
• Max. Volume: 36.0 GPM
• Max. Discharge Pressure: 1,500 PSI
• Max. Pump Speed: 800 RPM
• Shaft Diameter: 35mm Solid
• Maximum Horsepower Requirements: 27.6 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Port: 1-1/2" Female
• Discharge Port: 1" Female
• Drive Side: Standard right
• Weight: 198.0 lb.
• Ship via truck
