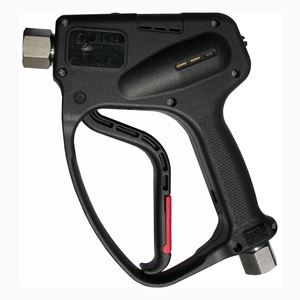

PA RL 84 Heavy Duty, High Pressure Spray Gun 8,100 PSI 21 GPM. Ergonomic construction with minimum fatigue for trigger opening and reduced pressure loss
Features• Covered by shockproof plastic semi-housings• Sturdy construction of Sst & brass with dynamic teflon seals• Assembly on hoses equipped with G 1/2” fittings• Entirely built of Sst & body in brass• Ergonomic construction• Minimum fatigue for trigger opening• Minimum load loss (see chart)
Specifications • Rated Pressure: 7,250 PSI• Permissible Pressure: 8,100 PSI • Max Flow: 21.0 GPM• Max Temp: 210° F.• Inlet: 1/2" BSP-F• Outlet: 1/2" BSP-F• General Pump # YG7221• Weight: 49.17 oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 0° x #9.0 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 0°• Nozzle Size: 9.0• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Matching High Pressure Stainless Steel Lance & Holder for RL 84 & RL 204 Trigger Guns. Complete with adjustable handle
Specifications• Length: 31.5”• Permissible Pressure: 8,100 PSI• Rated Pressure: 7,250 PSI • Rated Flow Rate: 53.0 GPM• Rated Temperature: 109° F • Inlet: 1/2" Male• Outlet: 1/4" Female NPT(nozzle holder)• General Pump # Y30500080, Lance for YG7221/L31• Weight: 52.5 oz
General YG4032S / PA 30.0680.50 High Flow 32 GPM Straight, Rear Entry Spray Gun for Hydro Excavation.
Features: • Shockproof plastic housing• Unique design compensates for changes in pressure• Internal construction of brass and Stainless Steel• Ergonomic design• Minimizes fatigue for the operator
Specifications:• Max Volume: 32 GPM • Rated Discharge Pressure: 4,050 PSI• Max Discharge Pressure: 4,500 PSI • Max Temp: 210° F.• Inlet: 1/2" Female NPT• Outlet: 1/2" Female NPT• Materials: Stainless Steel, Brass, Plastic, Viton• Weight: 2.8 lbs
Specifications• Length: 50”• Permissible Pressure: 8,100 PSI• Rated Pressure: 7,250 PSI • Rated Flow Rate: 53.0 GPM• Rated Temperature: 109° F • Inlet: 1/2" Male• Outlet: 1/4" Female NPT(nozzle holder)• General Pump # Y30500092, Lance for YG7221/L51• Weight: 76.4 oz
