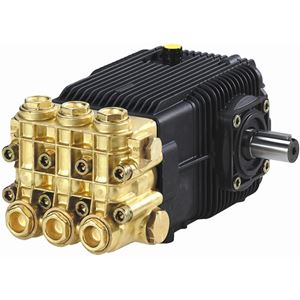

• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 7.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 17.0 BHP
• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 3/4" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Left
• Forged brass head & valve covers
• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life
• Weight: 34.0 lb.

Propulse 6,000 PSI Grey “mark-less” 2' jumper hose. This grey jumper hose can be used as a bypass hose from unloader to pump, connector / whip hose from pump to heater coil, heater coil to outlet and for connecting pressure washer to a hose reel. Also is an ideal connector hose for carwash self service bays and pump room.

Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: Two layers of high tensile braided steel – R2 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 2’
• Working (Maximum): Up to 6,000 PSI
• Burst (Minimum): 18,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 212° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 1.00 lbs

Newly introduced Mecline VRT3 Unloader with out knob is an updated version of the Arrow Line VRT unloader with a stronger valve body with less porosity.

New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting

Featuring:
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded spring – easy valve identification
• All ports are FNPT

Specifications:
• Spring Color: Black
• Does not included black adjustment knob
• Replaces AL607XA
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Ports (2): 3/8" FNPT
• Discharge Ports (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 27.9 oz
