Picture of GP 20% Adjustable Acid Chemical Injector QC Kit # 2.1

GP 20% Adjustable Acid Chemical Injector QC Kit # 2.1

SKU: 88.0070

Brand: General Pump

$24.04

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump #2.1mm Adjustable High Draw Chemical Injector with Acid Kit & 3/8” Quick Disconnects. This 0 - 20% adjustable flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

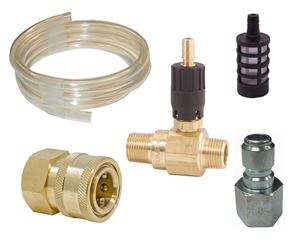

Kit Components:
• General Pump #2.1 mm 20% adjustable chemical injector (Made in the USA)
• General Pump 3/8” Steel QD plug
• General Pump 3/8” Brass QD socket
• Plastic chemical filter
• 5’ Clear PVC chemical line


Injector Specifications:
• Size: # 2.1 mm (3.0 to 5.0 GPM)
• Acid kit with ceramic check ball
• Adjustable Injection ~ 0 - 20%
• Max Operating Pressure: 4,000 PSI
• Max Temperature: 175° F
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Ceramic, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.80 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of QD Plug, SS 1/4 x 1/4 NPT-F 6,000 PSI

QD Plug, SS 1/4 x 1/4 NPT-F 6,000 PSI

SKU: D10076


General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP1FSS
• Weight: 0.06 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.94
Picture of 3/8" x 2' Grey 6,000 PSI Pressure Washer Jumper Hose

3/8" x 2' Grey 6,000 PSI Pressure Washer Jumper Hose

SKU: 9895B9024

Propulse 6,000 PSI Grey “mark-less” 2' jumper hose. This grey jumper hose can be used as a bypass hose from unloader to pump, connector / whip hose from pump to heater coil, heater coil to outlet and for connecting pressure washer to a hose reel. Also is an ideal connector hose for carwash self service bays and pump room.


Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: Two layers of high tensile braided steel – R2 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 2’
• Working (Maximum): Up to 6,000 PSI
• Burst (Minimum): 18,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 212° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 1.00 lbs

  Price: $11.40
Picture of GP 15º (Yellow) x #4.0 QC Spray Nozzle

GP 15º (Yellow) x #4.0 QC Spray Nozzle

SKU: 915040Q


General Pump 15° (Yellow) #4.0 Quick Connect (Q) Spray Nozzle


Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability


Specifications
• Tip Angle: 15° (Yellow)
• Nozzle Size: 4.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $3.08
Picture of GP Quick Disconnect Coupler Fittings 4,000 PSI (St Plug & Br Socket)

GP Quick Disconnect Coupler Fittings 4,000 PSI (St Plug & Br Socket)

SKU: 88.0006


General Pump 3/8" 4,000 PSI Quick Disconeect Coupler Fittings (1 Plug & 1 Socket)


Features:
• Working Pressure: 4,000 PSI
• 1 pc: 3/8” NPT-F Brass quick coupler socket
• 1 pc: 3/8” NPT-F Zinc Plated Hardened Steel quick disconnect coupler plug
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"



  Price: $4.62
