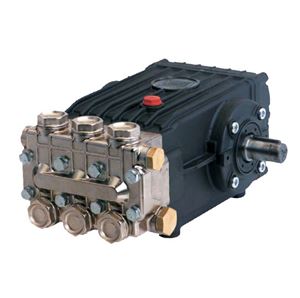

Picture of 4000PSI, 4.0GPM General Solid Shaft Pump

4000PSI, 4.0GPM General Solid Shaft Pump

SKU: T9281

Brand: General Pump

$868.75

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General T9281 Triplex Plunger Pump. The preferred pump frame in the pressure cleaning industry


Features:
• Nickel plated forged brass manifold
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves

Specifications Sheet

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.


Specifications:
• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 11.0 EBHP
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 37.2oz.
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Standard right
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 33.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of GP YU21405 Adjustable Unloader 4,500 PSI (Green)

GP YU21405 Adjustable Unloader 4,500 PSI (Green)

SKU: YU21405

General YU21405 green spring trapped pressure unloader valve.


Specifications:
• Spring Color: Green
• Maximum Pressure: 4,500 PSI
• Rated Pressure: 4,050 PSI
• Max. Volume: 21.0 GPM
• Adjustable pressure
• Forged brass body
• Maximum Temperature: 200° F
• Inlet Ports (2): 1/2" FPT
• Discharge Port: 1/2” FPT
• Bypass Ports (2): 1/2” FPT
• Weight: 3.1 lb

  Price: $138.75
Picture of Pulsar 4 Unloader Plumbing Kit - 4,000 PSI Max, EZ Start

Pulsar 4 Unloader Plumbing Kit - 4,000 PSI Max, EZ Start

SKU: 88.0133


PA Pulsar 4 Unloader Plumbing Kit for Pressure Washer Pump with EZ Start– 4,050 PSI Max. This unloader kit has all the components to make installation easy


Specifications:
• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet
• Built-In easy start valve relieves back pressure during engine start up
• Maximum Pressure: 4,050 PSI
• Max. Volume: 10.5 GPM


COMPONENT:
• PA Pulsar 4 Adjustable Unloader Valve 4,050 PSI with EZ Start
• 24” of push-on bypass hose
• 1/4” Male push on fitting
• 3/8” Male push-on fitting
• 3/8M x 3/8M Hex Nipple Steel
• GP Thermal relief valve protects pump from overheating
• GP Duraview water inlet filter with garden hose connection
• 3/8” QC socket
• 3/8” QC plug
• Roll of Teflon tape
• Note: Pump in 2nd picture is not included and kit may look different than shown in picture
• Unloader Must Be Installed Vertically For Proper Operation
• Weight: 5 lb

  Price: $89.43
Picture of Thermal Relief Valve 145º F 1/2" MPT

Thermal Relief Valve 145º F 1/2" MPT

SKU: 100558

General Pump PTP™ Series Pressure Washer Thermal Relief Valve with 1/2" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.


Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 145º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz

  Price: $5.59
Picture of Safety Relief Valve 6,000 PSI, 3/8" MPT

Safety Relief Valve 6,000 PSI, 3/8" MPT

SKU: 100534


General Pump 100534 6,000 PSI Safety Relief Valve 3/8” MPT-N. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system


Features:
• High pressure safety valve: 2,500 – 6,000 PSI relief pressure
• One model fits all pressures - no springs to change
• Less “whistling” and chatter than competing brands
• Highly accurate over full range of pressures
• Fits any brand of pump
• Designed and made in the USA


Specifications:
• Adjustable Range: 2,500 - 6,000 PSI
• Max Volume: 6 GPM
• Discharge: End
• Max Temperature: 32 - 150° F
• Inlet: 3/8" NPT-M
• Dimensions: 2.6” x .875” Hex
• Weight: 0.325 lbs

  Price: $14.85
