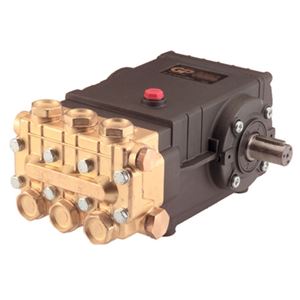

• Triplex Plunger Pump• Solid Shaft for Belt or Gear Drive• Max. Volume: 5.5 GPM• Max. Discharge Pressure: 2,100 PSI• Max. Pump Speed: 1150 RPM• Shaft Diameter: 24mm Solid• Max. Horsepower Requirements: 11.0 GHP• Max. Fluid Temp.: 165 degrees F.• Inlet Ports (2): 1/2" BSP• Discharge Ports (2): 3/8" BSP• Drive Side: Standard right• Forged brass head & valve covers• Solid ceramic plungers• Weight: 32.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-357 Turbo / Rotating #8.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 8.0 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Twist Coupler Plug, 3/8" MPT x M22-14MM M
Features:• Precision machined
Specifications:• Max. Pressure: 4,000 PSI• Max. Flow: 10.0 GPM• Material: Brass• Inlet: 3/8” MPT• Outlet: Male M22-14MM M
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for commercial pressure cleaning applications • Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish, “Mark-Less” with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 50’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Grey• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty black bend restrictors on both ends• Weight 10.4 lbs
General Pump 40° (White) #8.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 40° (White)• Nozzle Size: 8.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
