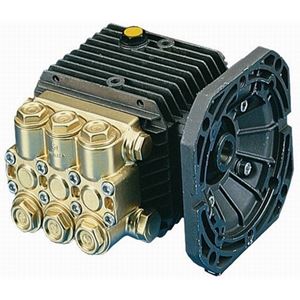

1,500 PSI 2.11 GPM General TT9051EBF Direct Couple to Electric Motors (NEMA 56C)

Features:
• Forged brass manifold with exclusive lifetime warranty
• Die-cast annodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet and outlet valves
• Ideal for all general cleaning, RO and misting applications
• Comes standard with NEMA 56C electric motor mounting flange
• Also available in “L” left-handed versions

Specifications Sheet

Specifications:
• Maximum Volume: 2.11 GPM
• Maximum Discharge Pressure: 1,500 PSI
• Maximum Pump Speed: 1,750 RPM
• Maximum Inlet Pressure: 125 PSI
• Oil Capacity: 11.2 oz.
• Maximum Fluid Temperature: 165°F
• Inlet Port Thread: 3/8-19 BSPP-F
• Discharge Port Thread: 1/4-19 BSPP-F
• Shaft Diameter 5/8 in. / 16 mm
• Horespower: 2.2 EBHP
• Weight 12.0 lbs.
