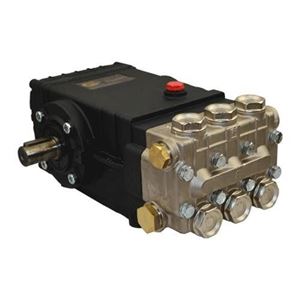

Picture of 3500PSI, 5.6GPM General Solid Shaft Pump (Left)

3500PSI, 5.6GPM General Solid Shaft Pump (Left)

SKU: TS2021L

Brand: General Pump

$531.25

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General TS2021L Triplex Plunger Pump (Left Handed). The preferred pump frame in the pressure cleaning industry


Features:
• Forged, nickel-plated, brass manifold with an exclusive lifetime warranty
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves


Specifications:
• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 5.6 GPM
• Max. Discharge Pressure: 3,500 PSI
• Max. Pump Speed: 1450 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 18.0 GHP
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Left
Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 32.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
