Mecline VRT310-EZ Unloader Plumbing Kit for Pressure Washer Pump with EZ Start– 4,495 PSI Max. This unloader kit has all the components to make installation easy

Specifications:
• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet
• Built-In easy start valve relieves back pressure during engine start up
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM

COMPONENT:
• Mecline VRT3-310EZ Adjustable Unloader Valve 4,500 PSI with EZ Start
• 24” of push-on bypass hose
• 1/4” Male push on fitting
• 3/8” Male push-on fitting
• 3/8M x 3/8M Hex Nipple Steel
• GP Thermal relief valve protects pump from overheating
• GP Duraview water inlet filter with garden hose connection
• 3/8” QC socket
• 3/8” QC plug
• Roll of Teflon tape
• Note: Pump in 2nd picture is not included and kit may look different than shown in picture
• Unloader Must Be Installed Vertically For Proper Operation
• Weight: 5 lb

General Pump 25° x #2.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 2.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• BE # 85.225.020
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

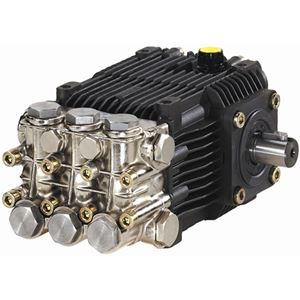

Features
• They are constructed of die-cast bodies and feature a nickel plated forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life
• Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are oversized for strength and load disbursement

Specifications
• Max. Volume: 3.96 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 11.0 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Left
• Weight: 20.0 lb.
