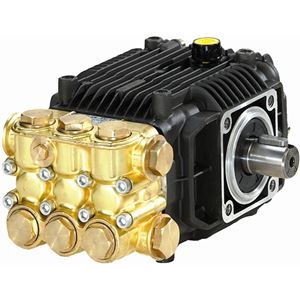

• Triplex Plunger Pump• Solid Shaft for Belt or Gear Drive• Max. Volume: 4.0 GPM• Max. Discharge Pressure: 2,000 PSI• Max. Pump Speed: 1750 RPM• Shaft Diameter: 24mm Solid• Maximum Horsepower Requirements: 5.5 BHP• Max. Fluid Temp.: 140 degrees F.• Inlet Ports (2): 1/2" FPT• Discharge Ports (2): 3/8" FPT• Drive Side: Standard right• Forged brass head & valve covers• Solid ceramic plungers• Weight: 14.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications:• Max. Volume: 4.0 GPM• Adjustable pressure• No chemical injector• Brass body with aluminum bypass• Built-In bypass channel• Max. Fluid Temp.: 165° F.• Inlet Port: 3/8" FPT• Discharge Port: 3/8” MPT• Weight: 1.85 lbs.
The AR North America CL Series electric clutch enables operation of the drive system for your pump without the pump itself being engaged. There can be significant reduction in wear and tear on the pump since it is only operating when called for
Specifications • Electric clutch for AR XM, RK & XW series pumps• 12 Volt single groove clutch• Size: 24mm• Works with "A" section belts• Use with AR-CLMP clutch mounting plate below• Replaces CL-521491
AR Kit: Clutch Mount XM Series. Note: Replaces AR-CLMP
Specifications: • Special blend, 30W viscosity, non-detergent crank case lubricating oil• Exceeds wear prevention requirements of all major hydraulic pump mfg's• Contains anti-wear, rust inhibitor and deoxidizer additives• Packaged in 16 oz bottles• NOT FOR USE IN CAT PUMPS or AXIAL PUMPS • Weight: 1.0 Lbs.
