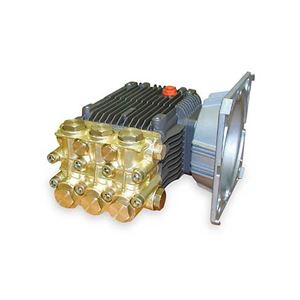

• Triplex Plunger Pump• Direct Drive with Electric Flange NEMA 182-184TC• Max. Volume: 5.5 GPM• Max. Discharge Pressure: 1,300 PSI• Max. Pump Speed: 1750 RPM• Shaft Diameter: 1 1/8” Hollow• Minimum Horsepower Requirements: 5.0 BHP• Max. Fluid Temp.: 160 degrees F.• Inlet Ports (2): 1/2" BSP• Discharge Ports (2): 3/8" BSP• Drive Side: Standard right• Forged brass head & valve covers• Solid ceramic plungers• Weight: 22.0 lb
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner Heavy Duty 4,000 PSI Pressure Washer Trigger Gun and Lance Kit. Industry standard, the ST-1500 is well-suited for a variety of industrial pressure washing applications. Includes all the components necessary to assemble the wand
Kit Components:• Suttner ST-1500 5,000 PSI Trigger Gun• Suttner ST-007 36” Nickel Plated Molded Grip Lance 6,000 PSI• General Pump brass 5,000 PSI quick coupler socket• General Pump zinc plated 4,000 PSI steel quick coupler plug• Teflon Tape: 1 Roll
Specifications: • Max Pressure: 4,000 PSI• Max Flow: 10.4 GPM• Max Temperature: 300° F• Trigger Gun Inlet: 3/8" Male QC plug• Lance Outlet: 1/4" Female QC socket (accepts QC color coded nozzles) • Note: Assembly is required• Weight: 3.10 lbs
Valley Industries Series 40 Dual Scale Industrial 2,000 PSI Back Mount 1-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration
Features:• Dial Range (PSI): 0 – 2,000• Dial Range (BAR): 0 – 140• Casing: 1 1/2" Diameter• Movement: Brass• Bourdon Tube: Helical in phosphor bronze • Pointer: Black enameled aluminum• Dial: White aluminum• Window: Polycarbonate – temperature compensating• Case Material: 304 Stainless steel• Mounting: Back• Connection Material: Brass• Connection Size: 1/8" MNPT• Fill Material: Glycerin (liquid)• Wetted Parts: Copper alloy• Weight: 0.25 lbs.
Mecline VRT310-EZ Unloader Plumbing Kit for Pressure Washer Pump with EZ Start– 4,495 PSI Max. This unloader kit has all the components to make installation easy
Specifications:• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet• Built-In easy start valve relieves back pressure during engine start up • Maximum Pressure: 4,495 PSI• Max. Volume: 8.0 GPM
COMPONENT:• Mecline VRT3-310EZ Adjustable Unloader Valve 4,500 PSI with EZ Start• 24” of push-on bypass hose• 1/4” Male push on fitting• 3/8” Male push-on fitting• 3/8M x 3/8M Hex Nipple Steel• GP Thermal relief valve protects pump from overheating• GP Duraview water inlet filter with garden hose connection• 3/8” QC socket• 3/8” QC plug• Roll of Teflon tape • Note: Pump in 2nd picture is not included and kit may look different than shown in picture• Unloader Must Be Installed Vertically For Proper Operation• Weight: 5 lb
