General Pump D10001 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-F 5,000 PSI

Features:
• Quick disconnect design
• Brass
• EPDM O-Ring

Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS1FB
• Weight: 0.15 lb

General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI

Features:
• Quick disconnect design
• Hardened Steel Zinc Plated

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCP1FS
• Weight: 0.06 lb

Twist Coupler Socket, 3/8" FPT x M22-14MM F Brass 4,000 PSI.

Features:
• Secure twist connection
• Precision machined
• High-Impact plastic Knob
• Internal o-ring seal

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass & Zinc plated steel
• Outlet: Female M22-14MM F
• Inlet: 3/8” FPT

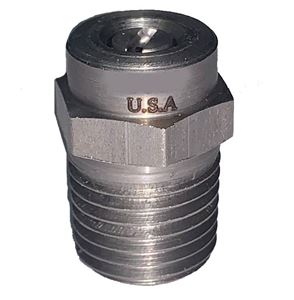

General Pump 40° x #5.5 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 40°
• Nozzle Size: 5.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
