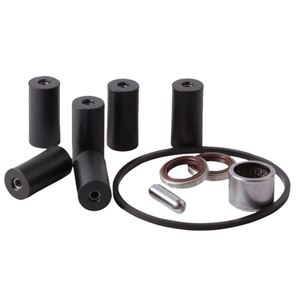

Delavan RollerPRO® 6 roller repair kitSpecifications:• Only works with Delavan RollerPRO® series roller pumps• Ultra Rollers (6): 3/4” Diameter• Shaft Seals (2) • Seal Ring• Shaft Key• Needle Bearing• Instructions
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Delavan RollerPRO® 6900DSS Stainless Steel Diamond Series™ 6-roller pump. Field Serviceable - saving precious time and money when you need to replace the rollers
Features• “Roundup Ready,” a Delavan Stainless Steel Diamond Series roller pump lasts ten times longer than a cast iron pump• Stronger than steel, it’s simply the best chemical-resistant roller pump you can buy• Delavan RollerPRO® pumps are field serviceable - saving precious time and money when you need to replace the rollers• Complete roller replacements takes about 3 minutes• To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
Specifications• Type: 6-Roller design• Max. Flow: 19.6 GPM• Max Operating Speed: 1,000 RPM• Max Pressure: 150 PSI• Max Recommended Temperature: 140°F (60° C)• Port Size: 3/4” NPT (female)• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)• PTO: Use torque bar and chain• Shaft Size: 5⁄8” solid shaft• Rotation: CCW (standard)• Housing: Stainless Steel Diamond Series™• Rollers: 3⁄4” Ultra rollers (standard)• Shaft Seals: Viton cartridge type lip seals• Seal Ring: Viton• Shaft & Rotor: Extra-fine finish 416 SST• Bearings: Permanently-lubricated, heavy-duty sealed bearings• Weight: 9 lbs
Features• Complete roller replacements takes about 3 minutes• To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
Specifications• Type: 6-Roller design• Max. Flow: 19.6 GPM• Max Operating Speed: 1,000 RPM• Max Pressure: 150 PSI• Max Recommended Temperature: 140°F (60° C)• Port Size: 3/4” NPT (female)• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)• PTO: Use torque bar and chain• Shaft Size: 5⁄8” solid shaft• Rotation: CCW (standard)• Housing: Cast Iron• Rollers: 3⁄4” Ultra rollers (standard)• Shaft Seals: Viton cartridge type lip seals• Seal Ring: Viton• Shaft & Rotor: Extra-fine finish 404 SST• Bearings: Permanently-lubricated, heavy-duty sealed bearings• Weight: 9 lbs
Specifications• Type: 6-Roller design• Max. Flow: 19.6 GPM• Max Operating Speed: 1,000 RPM• Max Pressure: 150 PSI• Max Recommended Temperature: 140°F (60° C)• Port Size: 3/4” NPT female (rear ports)• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)• PTO: Use torque bar and chain• Shaft Size: 5⁄8” solid shaft• Rotation: CCW (standard)• Housing: Cast Iron• Rollers: 3⁄4” Ultra rollers (standard)• Shaft Seals: Viton cartridge type lip seals• Seal Ring: Viton• Shaft & Rotor: Extra-fine finish 404 SST• Bearings: Permanently-lubricated, heavy-duty sealed bearings• Weight: 9 lbs
