Comet Seal Kit, Water TW 18mm

Replaces Comet # 5019.0645.00

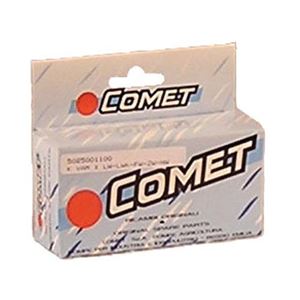

Comet Valve Kit (4000+ PSI) TW

Replaces Comet # 5025.0021.00

General TMT Flow Switch. Tri-magnet technology in-line flow switch

Features
• Micro-switch technology eliminates reed switch
• Activates with 1.25 GPM flow
• Stainless Steel shuttle
• Minimal pressure drop up to 12 GPM flow
• Can be mounted in any position

Specifications
• Maximum Operating Pressure: 5,000 PSI
• Minimum Flow Required for Activation: 1.25 GPM
• Maximum Operating Flow: 12.0 GPM
• Operating Temperature Range: 40 - 180 ºF
• Electrical Lead Length: 48” - 18AWG
• Max Switching Voltage: 250 VAC
• Max Switching Current: 5 AMPS
• Inlet: 3/8” x 18 NPT-F
• Outlet: 3/8” x 18 NPT-F
• Replaces GP # 100934
• Materials: Brass, Stainless Steel, Plastic, Nickel-plated Neodymium
• Weight: 1.0 Lb

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

Features:
• Assembled in USA with high quality components
• Suitable for hot water commercial pressure cleaning applications
• Rubber construction throughout
• Reinforcement: Two layers of high tensile braided steel – R2 Rating
• Cover: Wrapped finish, “Mark-Less” with embossed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 50’
• Working (Maximum): Up to 6,000 PSI
• Burst (Minimum): 18,000 PSI
• Color: Grey
• Maximum Temperature: 212° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Permanent heavy duty red bend restrictors on both ends
• Weight 16.0 lbs
