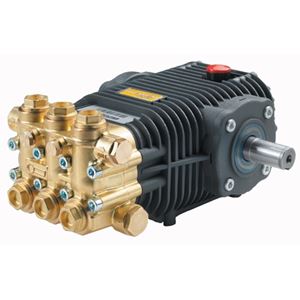

Comet Premium RW 4040 S Series Triplex Plunger Pump
• Solid Shaft 24mm for Belt Drive, Gearbox or Flex Couplers• Crankcase: Die-Cast Aluminum Alloy for Protection Against Corrosion• Piston Guides are Heat Treated Stainless Steel• Highly Efficient Stainless Steel Check Valves• Solid Ceramic Plungers• Brass Manifold: Forged for Maximum Strength and Longer Life up to 4000 PSI• One Piece, Solid Bronze Alloy Connection Rods• High Quality Tapered Roller Bearings• Large 25 oz oil Capacity Dissipates Heat and Improves Lubrication for Longer Life• Oil Cap: New Travel/Working Oil Cap • Max. Volume: 4.0 GPM• Max. Discharge Pressure: 4,000 PSI• Max. Pump Speed: 1450 RPM• Shaft Diameter: 24mm Solid• Max. Fluid Temp.: 145º F.• Inlet Ports (2): 1/2" FPT• Discharge Ports (2): 3/8" FPT• Drive Side: Right hand standard• Replaces Comet # 6517.1400.00• Weight: 27.0 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
• Comet Check Valve Kit LW, ZW, FW2, HW, RW & SW• Not for ZWD-K MODELS 3538G, 4042G, 4042S• Replaces Comet Kit # 5025.0011.00
New Design Features: • Interior Design – more efficient flow and operation• Dual Locking Nuts – vibration resistant for setting maximum pressures• New Spring Material – more resistant to fatigue, powder paint resists rusting• Piston – large diameter, more strength and contact area for shifting alignment• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting
Featuring:• Over sized handle – easier adjustment• Forged valve body – excellent strength• Two inlet ports• Two by-pass ports• Ultra thick inlet and discharge ports - added strength• Color coded springs and caps – easy valve identification• All ports are FNPT
Specifications:• Spring Color: Blue• Replaces AL606 & AL606X• Maximum Pressure: 3,650 PSI• Max. Volume: 8.0 GPM• Adjustable pressure• Brass valve body• Max. Fluid Temp.: 194° F.• Inlet Ports (2): 3/8" FNPT• Discharge Ports (1): 3/8” FNPT• Bypass Ports (2): 3/8” FNPT• Weight: 29.6 oz
Comet Standard Mounting Rail Kit RW
Replace Comet # 5011.0229.00
Specifications: • Used to support extension wands for easier use and comfort • Has a quick release buckle for easy on and off• Works with all extension wands • Attaches to extensions wands with female 22mm twist connect outlet• This listing is for the Belt Kit only - Wand not included• Weight .75 lbs.
