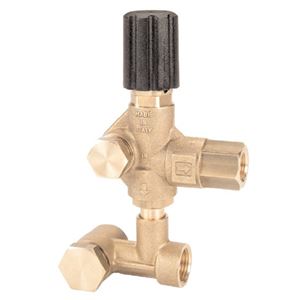

• Direct Mount Unloader Fits General Series Pumps: 44 (EZ Pumps), 47 and 63 (TX Pumps) • Maximum Pressure: 3,650 PSI• Max. Volume: 7.8 GPM• Adjustable pressure• No Chemical Injector• Forged brass body & hardware• Built-In bypass channel• Max. Fluid Temp.: 195 degrees F. • Inlet Ports (1): 1/2" FPT• Discharge Ports (1): 3/8” MPT• Weight: 1.8 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• Made in USA with high quality components • 90 Degree swivel action with Viton O-rings• Teflon washer• Repairable
Specifications• Maximum Pressure: 3,000 PSI• Maximum Flow Rate: 10.0 GPM• Maximum Temperature: 300° F• Material: Brass• Inlet: 1/2" FPT• Outlet: 1/2" FPT• Weight: 14.0 oz
Specifications: • Compact Design - Shorter overall length• Trip Temperature: 145º F.• Brass body• Inlet thread size: 1/2" MPT• 1/4” Hose barb• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing• Weight: 1.5 oz
Specifications: • Compact Design - Shorter overall length• Trip Temperature: 145º F.• Brass body• Inlet thread size: 3/8" MPT• 1/4” Hose barb• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing• Weight: 1.5 oz
General Pump 25° x #6.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 25°• Nozzle Size: 6.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
