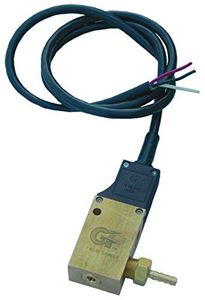

Picture of General TMT Flow Switch With Pilot Feature, Vertical Mount

General TMT Flow Switch With Pilot Feature, Vertical Mount

SKU: 100879

Brand: General Pump

$135.62

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General TMT Flow Switch With Pilot Feature


Features
• Micro-switch technology eliminates reed switch
• Activates with as little as .5 gpm flow
• Minimal pressure drop up to 12 gpm flow
• Mount in vertical position

Specifications Sheet


Specifications
• Maximum Operating Pressure: 4,000 PSI
• Minimum Flow Required for Activation: 0.5 GPM @ 50 PSI
• Maximum Operating Flow: 12.0 GPM
• Operating Temperature Range: 40 - 180 ºF
• Electrical Lead Length: 48” - 18AWG
• Max Switching Voltage: 250 VAC
• Max Switching Current: 5 AMPS
• Inlet: 3/8” x 18 NPT-F
• Outlet: 3/8” x 18 NPT-F
• Pilot: 1/4” Hose Barb
• Material: Buna-N, Brass, Plastic, Nickel Plated Neodymium
• Weight: 1.3 Lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
