Annovi Reverberi / AR North America SJV 3G31-1, SJV3G27D-EZ Axial Radial Pump with East Start. This AR SJV series pump is designed for medium duty loads. It spins at 3400 RPM in a direct drive system coupled with a gasoline engine, the matching flange provides convenient connections to most 3/4” shaft 3.5 - 6.5 HP engines. Precision die-cast crankcase with large cooling fins for maximum heat dissipation. Seals and V-Packings designed to continuously lubricate for extended life. Built-in unloader to optimize performance while reducing setup time. Integral trap pressure, easy start and fixed chemical injection

Specifications
• Axial Cam Pump with Easy Start is smooth starting

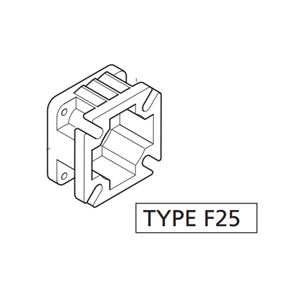

• Horizontal Mount Direct Drive with Gas Flange 3-8.5 HP SAE (2-9/16 center to center)
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 3,100 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 3/4” Hollow
• Maximum Horsepower Requirements: 8.45 GHP
• Max. Fluid Temp.: 140º F.
• Inlet Port: 1/2" Male
• Discharge Port: 3/8" Male
• Auxiliary Port: 1/4" Female
• Built In unloader and chemical injector
• Forged brass head & valve covers
• Replaces SJV3G27D-F7, SJV 3G27D & Troy Bilt # SJV 3G27-1
• Solid ceramic plungers
• Weight: 11.0 lb.

Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 145º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz
