• Inlet Washer with Cone Filter 304SS 50/60 Mesh
• For 3/4 FGH garden hose inlet connectors
• Replaces AR7369

Fairview X124-D 1/2 MPT x 1/2 FPT Extruded Brass 45° Street Elbow. Fairview's Extruded 45° Street Elbow Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas, LP-Gas to 1,200 PSI WP

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 5,000 PSI
• Material: Extruded brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.19 lbs

PA Pulsar 4 Unloader Plumbing Kit for Pressure Washer Pump with Safety Relief and EZ Start– 4,050 PSI Max. This unloader kit has all the components to make installation easy

Specifications:
• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet
• Safety relief vale protects equipment and people with adjustable “Pop Off” protection
• Built-In easy start valve relieves back pressure during engine start up
• Maximum Pressure: 4,050 PSI
• Max. Volume: 10.5 GPM

COMPONENT:
• PA Pulsar 4 Adjustable Unloader Valve 4,050 PSI with EZ Start
• GP Safety pressure relief valve with adjustable range: 1,000 - 6,000 PSI
• 3/8” Steel street elbow
• 24” of push-on bypass hose
• 1/4” Male push on fitting
• 3/8” Male push-on fitting
• 3/8M x 3/8M Hex Nipple Steel
• GP Thermal relief valve protects pump from overheating
• GP Duraview water inlet filter with garden hose connection
• 3/8” QC socket
• 3/8” QC plug
• Roll of Teflon tape
• Note: Pump in 2nd picture is not included and kit may look different than shown in picture
• Unloader Must Be Installed Vertically For Proper Operation
• Weight: 5 lb

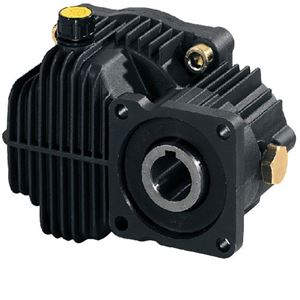

Features
• They are constructed of die-cast bodies and feature a nickel plated forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life
• Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are oversized for strength and load disbursement

Specifications
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 11.0 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Standard right
• Weight: 20.0 lb.
