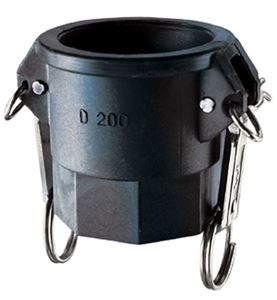

• Cam & groove Quick-Acting couplings • Agricultural, construction, water suction & discharge hoses• Connects hose without threading, tools, lugs and twisting• These couplers are supplied with locking feature• Safety clips may be inserted to lock handles and prevent disconnection • Body Material: Polypropylene • Handles: Type 316 Investment cast stainless steel• Slot Pins: Type 304 stainless steel• Pull Rings: stainless steel• Gasket: EPDM• Safety Clips: stainless steel• Style: Female Coupler x Female NPT (Part “D”)• Size(ID): 3.0”• Weight: 1.17 Lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications:• Size: 040• Min. Clamp Dia.: 2”, 52mm• Max. Clamp Dia.: 3”, 76mm• Band Width: 1/2”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.9 oz
Specifications:• Size: 048• Min. Clamp Dia.: 2-1/2”, 65mm• Max. Clamp Dia.: 3-1/2”, 89mm• Band Width: 1/2”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 1.0 oz
• Black Polypropylene Hose Barb - 90° Elbow• Male NPT inlet x hose barb outlet
