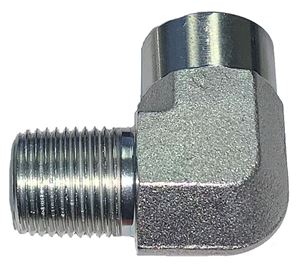

Accutek® S1016-CD Steel 90° Street Elbow 3/8 MPT x 1/2 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.35 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Polypropylene 1" MPT x 1/2" FPT Hex Head Bushing.
Features:• Polypropylene fittings are generally acceptable for use at working pressures up to 150 PSI at ambient temperatures• Polypropylene is resistant to a broad range of chemicals including most agricultural chemicals, acid based fertilizers, ammonium compounds, calcium carbonate, ethanol, hydrochloric acid, magnesium sulfate, oxalic acid, proprionic acid, phosphoric acid and sodium compounds
Specifications:• Black Polypropylene Hexagon Head Bushing • Male NPT x Female NPT
General Pump D10090 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-F 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3FSS• Weight: 0.35 lb
General Pump D10075 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-M 5,000 PSI
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS2MSS• Weight: 0.21 lb
