Picture of PA VB 80/400 Stainless Steel Adjustable Unloader 6,500 PSI

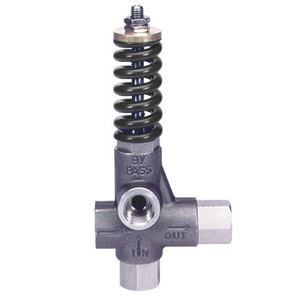

PA VB 80/400 Stainless Steel Adjustable Unloader 6,500 PSI

SKU: 60.0430.50

Brand: P.A. Srl

$399.00

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA VB 80/400 Stainless Steel Unloader Valve 6,500 PSI. Pressure regulating valve equipped with double connection for inlet port. At gun shut off, the water flow is bypassed at reduced pressure


Featuring:
• Sturdy construction in Sst Aisi 303
• Return action of the piston by means of a powerful spring, for confident working and a reliable pressure adjustment
• Multiple connections for easy installation
• Hexagonal shaped check valve to avoid jamming

Data Sheet


Specifications:
• Spring Color: Black
• Permissible Pressure: 6,500 PSI
• Rated Pressure: 5,800 PSI
• Rated Flow Rate: 21.0 GPM
• Material: Stainless Steel 303
• Rated Temperature: 195° F
• Inlet Ports (2): 1/2" F NPT
• Outlet Port: 1/2” F NPT
• Bypass Port: 1/2” F NPT
• AKA: AR # AR51248, GP # YU2158
• Weight: 47.0 Oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Safety Relief Valve 6,000 PSI, 3/8" MPT

Safety Relief Valve 6,000 PSI, 3/8" MPT

SKU: 100534


General Pump 100534 6,000 PSI Safety Relief Valve 3/8” MPT-N. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system


Features:
• High pressure safety valve: 2,500 – 6,000 PSI relief pressure
• One model fits all pressures - no springs to change
• Less “whistling” and chatter than competing brands
• Highly accurate over full range of pressures
• Fits any brand of pump
• Designed and made in the USA


Specifications:
• Adjustable Range: 2,500 - 6,000 PSI
• Max Volume: 6 GPM
• Discharge: End
• Max Temperature: 32 - 150° F
• Inlet: 3/8" NPT-M
• Dimensions: 2.6” x .875” Hex
• Weight: 0.325 lbs

  Price: $14.85
Picture of Next Day Air

Next Day Air

SKU: MC-015
Next Day Air
  Price: $0.00
Picture of 5,000 PSI Back Mount 2-1/2" SS Pressure Gauge

5,000 PSI Back Mount 2-1/2" SS Pressure Gauge

SKU: 2240GXB5000


Valley Industries Series 40 Dual Scale Industrial 5,000 PSI Back Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 5,000
• Dial Range (BAR): 0 – 350
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



  Price: $15.44
Picture of Repair Kit VB 80/400, YU2158

Repair Kit VB 80/400, YU2158

SKU: YKITU2158

Repair Kit VB 80/400, GP # YU2158 PA # 60.0451.24

  Price: $21.64
