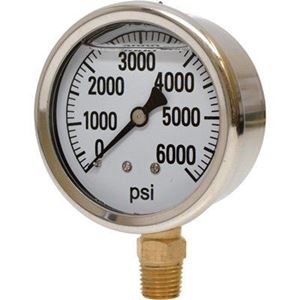

Picture of 6,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

6,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB6000

Brand: Valley Industries

$10.45

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 41 Single Scale OEM 6,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 6,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
