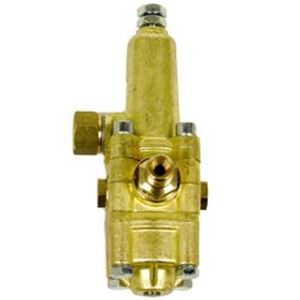

• Flow Actuated Unloader• Pressure Range : 0 - 3,000 PSI• Max. Volume: 6.6 - 10.8 GPM• Adjustable pressure• Brass body• All Stainless steel & brass internal parts• Max. Fluid Temp.: 165 degrees F.• Inlet Ports (1): 3/8" FPT• Discharge Ports (1): 3/8” MPT• Bypass Ports (1): 3/8” FPT• Gauge Ports (2): 1/4” FPT• 4.5 lbs. weight
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
General Pump D10075 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-M 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS2MSS• Weight: 0.21 lb
General Pump 25° (Green) #10.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 25° (Green)• Nozzle Size: 10.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
5/16" Stainless Steel Worm Gear Hose Clamp Size 05 - 1/4" to 11/16"
Specifications:• Size: 05• Min. Clamp Dia.: 1/4”• Max. Clamp Dia.: 11/16”• Band Width: 5/16”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.2 oz
