General EZ2555S 2500 PSI, 5.5 GPM Solid Shaft Pump for belt drive, flex coupling or gear reduction

Features:
• Solid ceramic plunger design
• Flex coupling and bell housing available for direct drive
• Forged brass manifold with 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves
• Available in “L” left-handed versions

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications Sheet

Specifications:
• Triplex Plunger Pump
• Max. Volume: 5.5 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 24MM Solid
• Max. Horsepower Requirements: 9.4 EBHP
• Max. Fluid Temp.: 165 degrees F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Standard right>
• Crankcase Oil Capacity: 14.0 oz

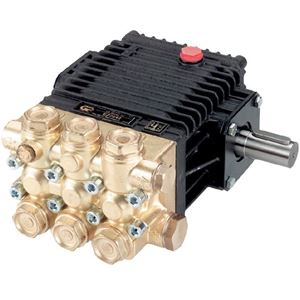

• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 18.0 lb.
