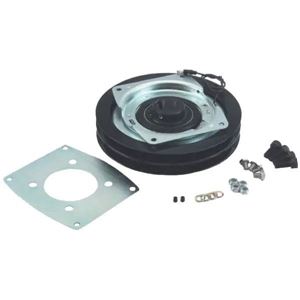

General Pump 100720 Clutch w/Mounting Plate 44, 50, 63 and 58 (ES) Series, 24V, Dual Groove. Mobile Clutch for 24mm Solid Shaft Pump

Features:
• Solid forged rotor. A one-piece solid forged rotor means no chance of internal parts separation. They have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
• Different coil voltages available. 12 volt is the most common; 24 volt clutches are also available.
• High temperature, longer-life grease. Our special long-life grease has shown a significant improvement in life over other standard high temp greases.
• E-coating. Where possible, all parts in the clutch are e-coated to give maximum corrosion protection.
• High-temperature epoxy coil. To help prevent failure from vibration and outside contaminants, all coils are sealed in the coil shell with a high-temperature epoxy coating.
• Forged machined pulley. All GP models use a heavy-duty machined pulley. A stronger pulley resists damage

Data Sheet

Specifications:
• Pulley Size & Type: 7" - A Groove, 24mm Shaft
• Width: 2.25"
• Torque After Burnishing: 75 - 95 lbs.
• Power Requirement: 24V 45.6 Watts
• Weight: 8.0 lbs
