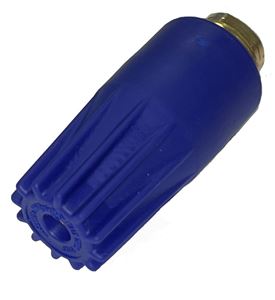

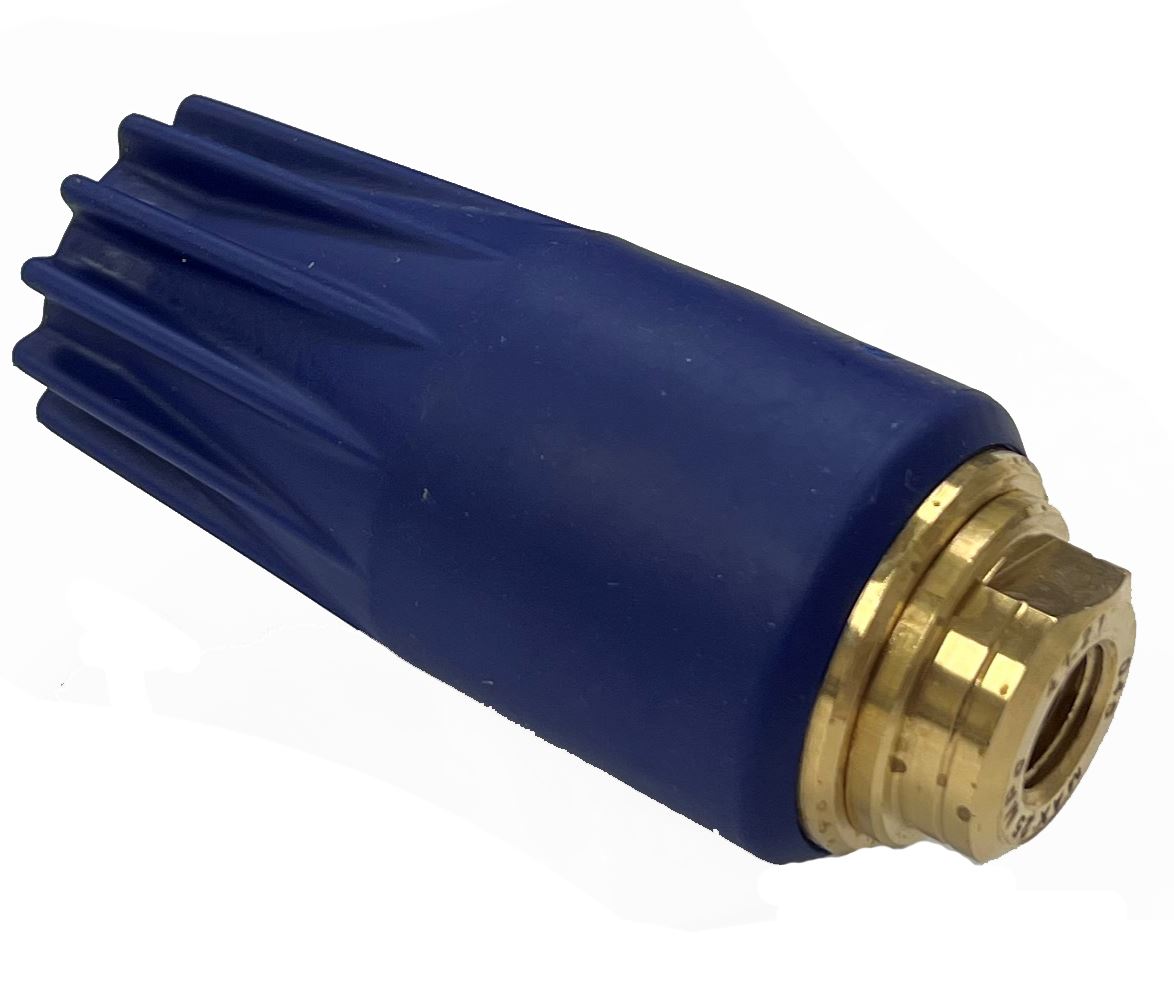

#5.5 Blue PA UR25 / GP YR36K Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector

Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover

Specifications
• Nozzle Size #5.5
• Max PSI: 3,650
• Max GPM: 7.7
• Max Temp.: 212° F
• Inlet: 1/4" NPT-F
• Minimum for operation: 1.6 GPM at 1,150 PSI
• Replaces 25.1620.55
• Weight: 0.9 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

#5.0 Blue PA UR25 / GP YR36K Turbo Nozzle 3,650 PSI is shrouded in a resilient rubber housing protector

Features
• Offers 0° Impact, but with a 25° pattern
• Unique internal stabilization spring design allows for aim & shoot operation
• Nozzle can be pointed in any direction
• Shock resistant ceramic
• High Strength forged brass housing
• Durable rubber cover

Specifications
• Nozzle Size #5.0
• Max PSI: 3,650
• Max GPM: 7.7
• Max Temp.: 212° F
• Inlet: 1/4" NPT-F
• Minimum for operation: 1.6 GPM at 1,150 PSI
• Replaces 25.1620.50
• Weight: 0.9 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Propulse Commercial Clean 4,000 PSI 3/8" x 100' Grey Rubber “Mark-Less” Hose with Quick-Connect Couplers. Rubber construction throughout, with a single layer of steel wire braid, the hose of choice for manufacturers of commercial duty pressure washers

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

Features:
• Assembled in USA with high quality components
• Suitable for commercial pressure cleaning applications
• Rubber construction throughout
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover Wrapped finish, “Mark-Less” with embossed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 100’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Grey
• Maximum Temperature: 250° F.
• Ends: 3/8" Quick Connect couplers ( 1 steel plug & 1 brass socket)
• Permanent heavy duty black bend restrictors on both ends
• Weight 18.3 lbs

General Pump #6.0 Quick Connect (Q) Spray Nozzle 5-Pack

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Nozzle Size: 6.0
• Contents: One each of a 0º, 15º, 25º, 40º and 65º #40 soap nozzle
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.50 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
