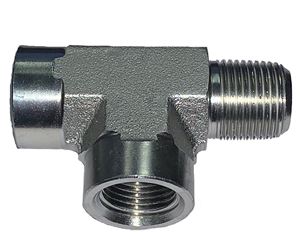

Accutek® S1007-D Steel Street Tee 1/2 FPT x 1/2 MPT x 1/2 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.44 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Polypropylene 1" MPT x 1/2" FPT Hex Head Bushing.
Features:• Polypropylene fittings are generally acceptable for use at working pressures up to 150 PSI at ambient temperatures• Polypropylene is resistant to a broad range of chemicals including most agricultural chemicals, acid based fertilizers, ammonium compounds, calcium carbonate, ethanol, hydrochloric acid, magnesium sulfate, oxalic acid, proprionic acid, phosphoric acid and sodium compounds
Specifications:• Black Polypropylene Hexagon Head Bushing • Male NPT x Female NPT
Accutek® S1024-D Steel 45° Street Elbow 1/2 Male Pipe x 1/2 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.29 lbs
Fairview 125-4D 1/4 Hose ID x 1/2 Male Pipe Brass Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion
Specifications:• Working Temperature: -40°F to +220°F, -40°C to +104°C • All hose barbs must be firmly fastened with hose clamps or ferrules• Weight: 0.10 lbs
