General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI

Features:
• Quick disconnect design
• Hardened Steel Zinc Plated

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCP1FS
• Weight: 0.06 lb

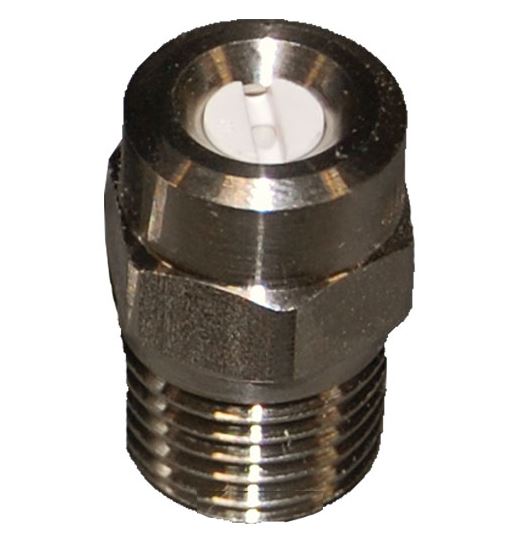

Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features

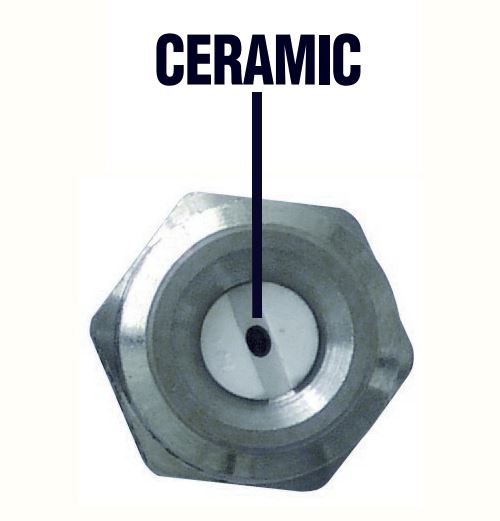

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 25°
• Nozzle Size: 3.5
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 15°
• Nozzle Size: 3.5
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump #1.8mm Adjustable High Draw Chemical Injector with Acid Kit & 3/8” Quick Disconnects. This 0 - 20% adjustable flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Kit Components:
• General Pump #1.8 mm 20% adjustable chemical injector (Made in the USA)
• General Pump 3/8” Steel QD plug
• General Pump 3/8” Brass QD socket
• Plastic chemical filter
• 5’ Clear PVC chemical line

Injector Specifications:
• Size: # 1.8 mm (2.0 to 3.0 GPM)
• Acid kit with ceramic check ball
• Adjustable Injection ~ 0 - 20%
• Max Operating Pressure: 4,000 PSI
• Max Temperature: 175° F
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Ceramic, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.80 lbs
