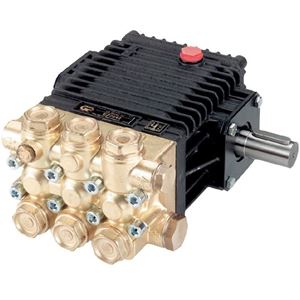

Picture of 2500PSI, 4.2GPM General Solid Shaft Pump

2500PSI, 4.2GPM General Solid Shaft Pump

SKU: EZ2542S

Brand: General Pump

$492.13

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General EZ2555S 2500 PSI, 4.2 GPM Solid Shaft Pump for belt drive, flex coupling or gear reduction


Features:
• Solid ceramic plunger design
• Flex coupling and bell housing available for direct drive
• Forged brass manifold with 4:1 hydrostatic rating
• Die-cast, anodized aluminum, oil-bath crankcase
• Premium roller bearing
• Unitized stainless steel inlet and discharge valves
• Available in “L” left-handed versions

WARNING: High Pressure Systems require a primary pressure regulating device (i.e. regulator, unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure to install such relief devices properly could result in personal injury or damage to pump or property. GP and PRI Industries do not assume any liability or responsibility for the operation of the user’s high pressure system.

Specifications Sheet


Specifications:
• Triplex Plunger Pump
• Max. Volume: 4.2 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24MM Solid
• Max. Horsepower Requirements: 7.2 EBHP
• Max. Fluid Temp.: 165 degrees F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8-19 BSPP-F
• Drive Side: Standard right>
• Crankcase Oil Capacity: 14.0 oz
• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 18.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of PA Pulsar 4 Adjustable Unloader 4,050 PSI (EZ Start)

PA Pulsar 4 Adjustable Unloader 4,050 PSI (EZ Start)

SKU: 60.0140.65


PA Pulsar 4 Unloader Valve 4,050 PSI with built-in Easy Start. Built-In easy start valve relieves back pressure during engine start up


Features
• NEW improved design!
• Reduced pressure loss
• Makes for easier gun operation
• Extremely reliable
• Easy maintenance
• Includes knob fitted with locknut for easy pressure adjustment
• Facilitates water discharge in pressure during start-up
• Reduces energy required for start-up

Specifications Sheet


Specifications:
• Rated Pressure: 4,050 PSI
• Permissible Pressure: 4,500 PSI
• Rated Temperature: 195° F
• Rated Flow Rate: 10.5 GPM
• Material: Steel and brass
• Inlet Port (1): 3/8" NPT-F
• Outlet Port (1): 3/8" NPT-F
• Bypass Ports (2): 3/8" NPT-F
• NOTE: Unloader Must Be Installed Vertically For Proper Operation
• Replaces Pulsar 280 #60.0006.90
• GP #: PULSAR4KHPEZ
• Weight: 26.0 oz

  Price: $50.40
Picture of Thermal Relief Valve 145º F 1/2" MPT

Thermal Relief Valve 145º F 1/2" MPT

SKU: 100558

General Pump PTP™ Series Pressure Washer Thermal Relief Valve with 1/2" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.


Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 145º F.
• Brass body
• Inlet thread size: 1/2" MPT
• 1/4” Hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz

  Price: $5.59
Picture of 3/8 M x F Street Elbow Brass

3/8 M x F Street Elbow Brass

SKU: 2102
  Price: $3.39 2 in stock
Picture of 3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB3000


Valley Industries Series 41 Single Scale OEM 3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 3,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



  Price: $10.76
