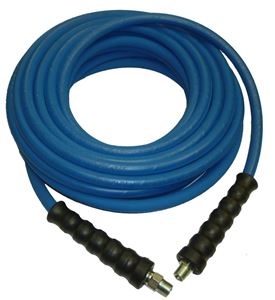

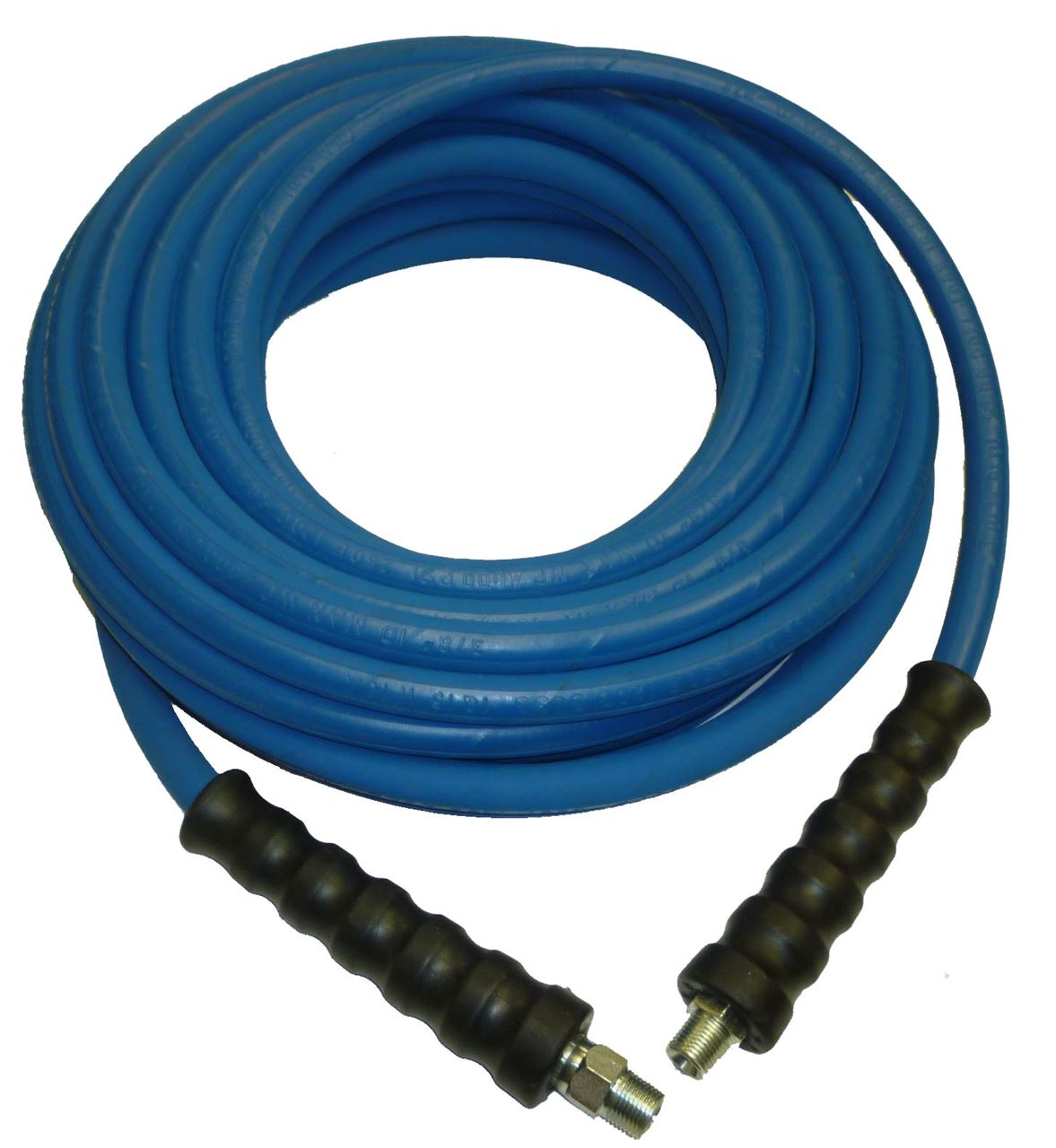

Propulse Commercial Clean 4,000 PSI 3/8" x 100' Blue Rubber “Mark-Less” Hose. Rubber construction throughout, with a single layer of steel wire braid, the hose of choice for manufacturers of commercial duty pressure washers
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for commercial pressure cleaning applications • Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish, “Mark-Less” with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+

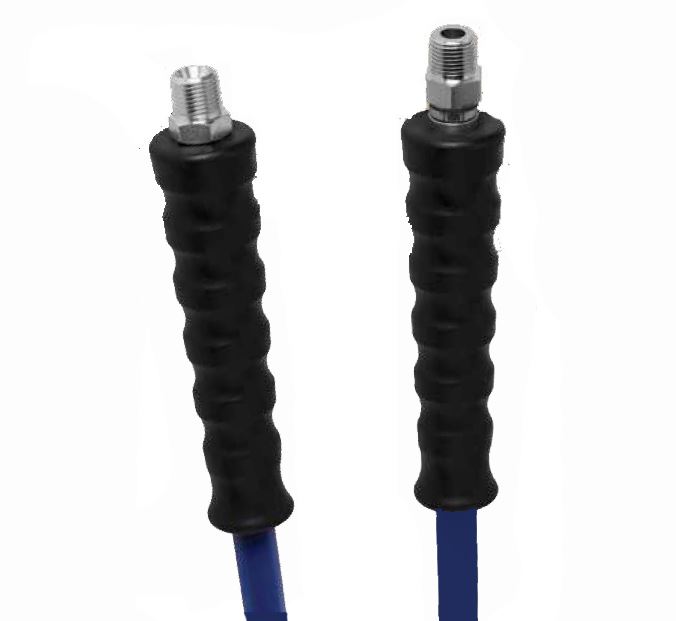

Specifications: • Hose Inner Diameter: 3/8" ID• Length: 100’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Blue• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty black bend restrictors on both ends• Weight 19.2 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 50’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Blue• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty black bend restrictors on both ends• Weight 9.6 lbs
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
General Pump 25° (Green) #5.0 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 25° (Green)• Nozzle Size: 5.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 40° (White) #5.0 Quick Connect (Q) Spray Nozzle
Specifications• Tip Angle: 40° (White)• Nozzle Size: 5.0• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
